Area chart

An area chart is an analog of a line graph with a filled area between the line and the axes.

Use an area chart to show in volume the dynamics of change in a data attribute value depending on a certain parameter.

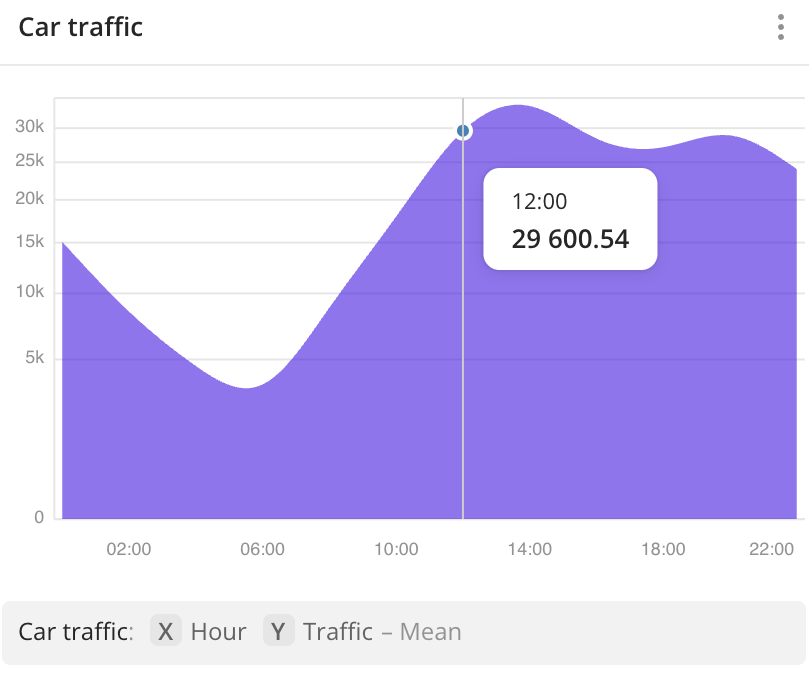

Case example: show the change in the volume of the car traffic per hour during the day:

Main features

The X-axis displays groups of data values. As a grouping attribute, you can select:
- Text attributes: for example, firm category, building purpose, and others.
- Numeric attributes: for example, number of reviews, building area, and others. To display data as an area, specify the number of ranges and their limits in the Number of ranges field when creating a widget or editing it. You can set up ranges of different sizes. The specified upper (right) limit is not included in the range.
The Y-axis displays aggregated values for each group. Aggregation is performed within one group or range. As an aggregation attribute, you can select:
- Number of objects: to count the number of values in a group or range.
- Numeric attributes: to count the value of this attribute within each group using aggregation functions: total, mean, minimum, maximum value, median, and percentile.
Instead of an area chart, you can use a line graph that does not contain a filled area below the graph.
If the filtering by territories or data attributes is applied on a dashboard scene, only the values that match the filters are displayed in the widget. For more information, see the Filtering data on a dashboard instruction.

Creating a widget

Go to the Dashboards tab.
Open the required dashboard.
Open a scene using the arrows and . If there is only one scene in the dashboard, it opens automatically when you open the dashboard.
In the top menu of the dashboard, click icon.

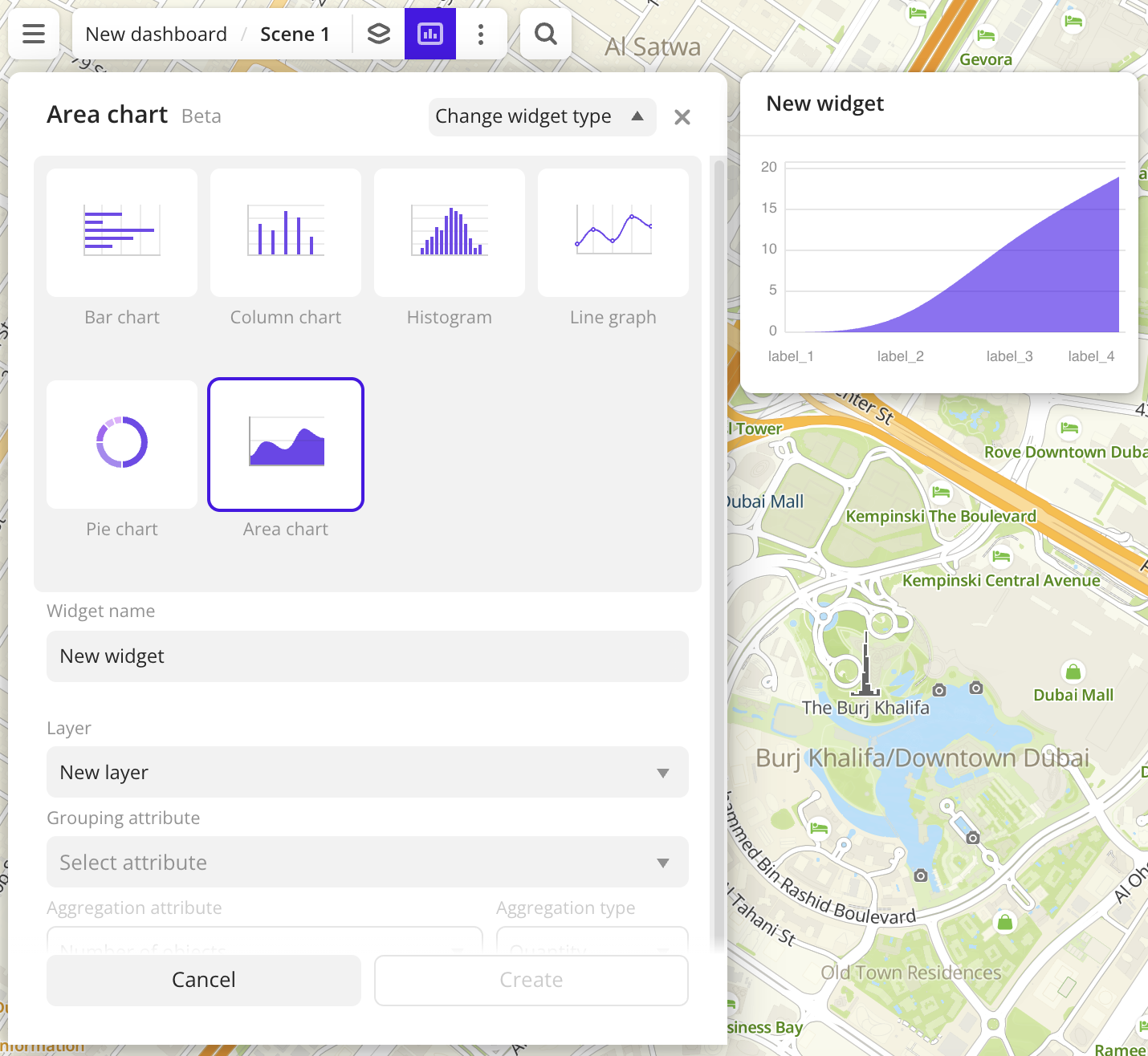

Select the Area chart widget type.
Specify the required parameters:
- Layer: data layer used to build a chart on the widget.
- Grouping attribute: attribute used to group data.
- Grouping attribute value: if you select a text grouping attribute, specify its values. You can select particular values from the sample in the drop-down list or generate the top 5 or top 10 values from the sample (the top values are automatically calculated based on the aggregation attribute).
- Aggregation attribute: attribute used to aggregate data and calculate the values. If you want to display only the number of values, select Number of objects.
- Aggregation type: function used to calculate aggregation attribute values. Aggregation is performed within each group or range of data.
Set the remaining widget parameters if necessary.
Click Create.

A new widget is created and automatically added to the selected dashboard scene.

Note

When working with the uploaded data, make sure it contains at least one attribute to build a chart.

Parameters

General widget settings

Parameter	Description
Widget name	Widget name.
Layer	Data layer used to build a chart on the widget.
Change widget type	Click to select another widget type from the list. The configured widget parameters are saved.

X-axis

Parameter	Description
Grouping attribute	Attribute used to group data on the chart. Displayed on the X-axis.
Grouping attribute value	The number of dots that are displayed on the chart. As values, you can select the following: Any attribute values from the sample in the drop-down list. You can change the order of the dots on the chart if necessary. The top 5 or top 10 values from the sample that are automatically calculated based on the aggregation attribute. To display the sum of the last value in the top and the remaining values in the sample below this position in the last dot on the chart, select the Show other checkbox. For text grouping attributes only.
Number of ranges	The number of ranges (dots) that are displayed on the chart. The available number of ranges depends on the data, the maximum number is 10. Ranges are calculated automatically, but you can set them manually by entering the required range limits. The specified upper (right) limit is not included in the range. To add a range, click icon. To delete a range, click icon. To recalculate ranges after configuration, click . For numeric grouping attributes only.

Y-Axis

Parameter	Description
Aggregation attribute	Number of objects or a numeric attribute used to aggregate data on the chart. Aggregation is performed within each group or range of data. Displayed on the Y-axis.
Aggregation type	Function used to calculate aggregation attribute values in each group or range of data: Sum: the sum of the values. Mean: the mean value. Min: the minimum value. Max: the maximum value. Median: the median value that is equal to or greater than 50% of the values in the group. 80th percentile: the value that is equal to or greater than 80% of the values in the group. 95th percentile: the value that is equal to or greater than 95% of the values in the group. 99th percentile: the value that is equal to or greater than 99% of the values in the group.

Parameter

Description

Aggregation attribute

Number of objects or a numeric attribute used to aggregate data on the chart. Aggregation is performed within each group or range of data. Displayed on the Y-axis.

Aggregation type

Function used to calculate aggregation attribute values in each group or range of data:

Sum: the sum of the values.
Mean: the mean value.
Min: the minimum value.
Max: the maximum value.
Median: the median value that is equal to or greater than 50% of the values in the group.
80th percentile: the value that is equal to or greater than 80% of the values in the group.
95th percentile: the value that is equal to or greater than 95% of the values in the group.
99th percentile: the value that is equal to or greater than 99% of the values in the group.

Color

Parameter	Description
Color	Selecting a chart fill color. You can select a color from the palette or specify it in HEX format.

Description

Parameter	Description
Text	Text displayed on the widget above the chart. The maximum number of characters is 5000.
H1	Title (heading 1).
H2	Heading 2.
H3	Heading 3.
B	Bold.
I	Italic.
U	Underline.
	Inserting a link.
Color	Text color. You can select a color from the palette or specify it in HEX format.

Appearance of the graph

Parameter	Description
Show axis titles	Shows the labels of the X and the Y axes on the chart. By default, names of the selected attribute values are shown. To change the axes labels, enter new values in the X-axis and the Y-axis fields. The maximum number of characters is 50.
Labels	Shows the attribute values on the X and the Y axes.
Axes	Shows the axes on the chart.
Grid	Shows a grid on the chart.

Additional settings

Parameter	Description
Show source	Shows the name of the data layer, the grouping attribute and the aggregation attribute with the corresponding axes, and also the aggregation type.
Show empty ranges	Shows on the chart the ranges of values without data. For numeric grouping attributes only.
Total value	Shows the sum of the values of the aggregation attribute in the sample.
Mean value	Shows the mean value of the aggregation attribute in the sample.
Minimum value	Shows the minimum value of the aggregation attribute in the sample.
Maximum value	Shows the maximum value of the aggregation attribute in the sample.
Median value	Shows the median value of the aggregation attribute in the sample.
80th percentile	Shows the 80th percentile value of the aggregation attribute in the sample.
95th percentile	Shows the 95th percentile value of the aggregation attribute in the sample.
99th percentile	Shows the 99th percentile value of the aggregation attribute in the sample.
Total objects in the asset	Shows the number of objects in the sample used to calculate the values.
