Tasks Planned Data

The Tasks Planned Data category provides information about tasks created in the Task Planner. The category contains data of completed tasks only.

Overview

To get started:

1. Go to the Main or Data tab.

2. Select the Tasks Planned Data data category.

3. In the Geofilter settings dialog, select up to 50 territories for which the data sample is created. You can use standard and custom territories, and also build proximity zones and circles on the map. For more information, see the Geofilters section. After you select the territories, click Done.

4. On the top of the Filters tab, select the data display method:

   • Points: display as centroid points (the centers of the route geometries).
   • Geometries: display as lines (planned routes).

5. On the Filters tab, set the remaining filters if necessary.

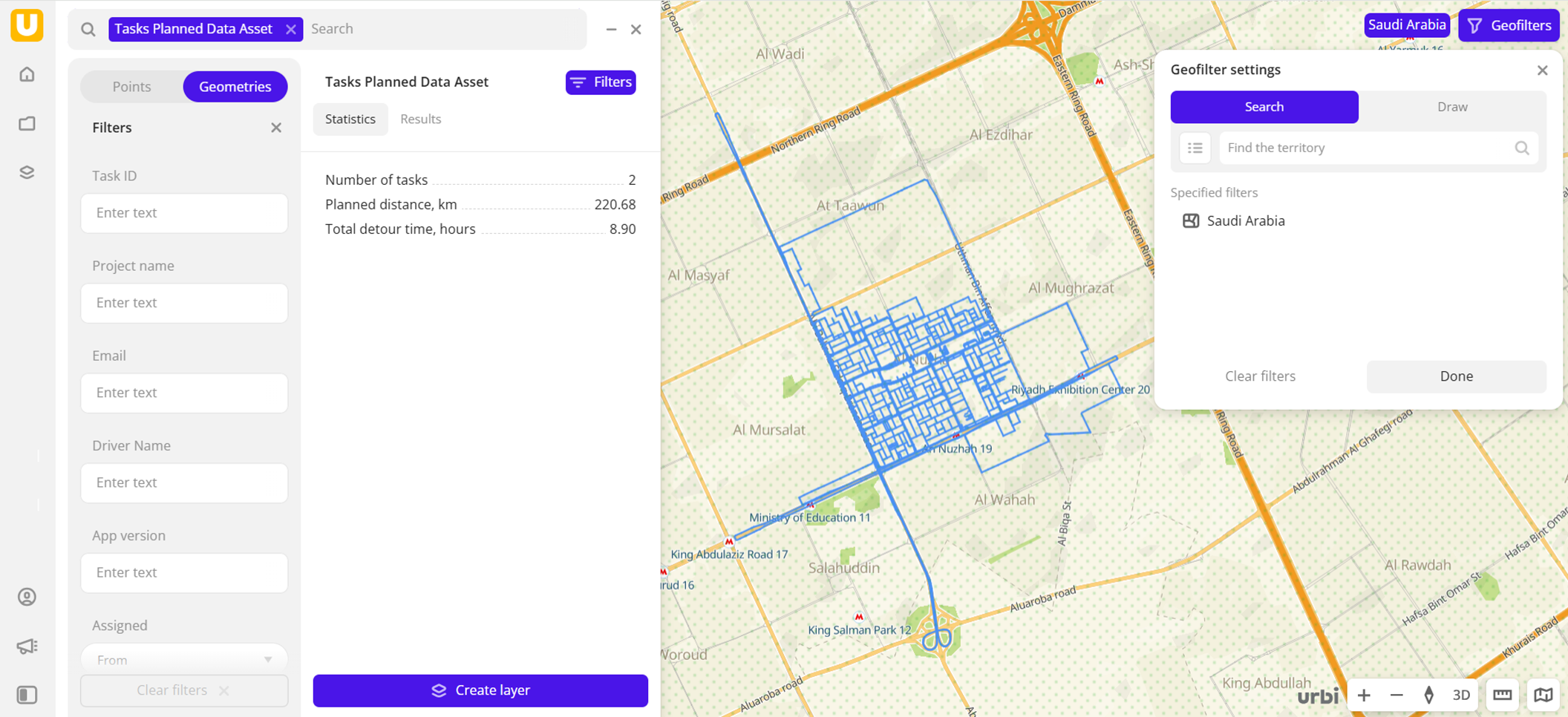

The data is displayed on the map. Filtering results are available in two variants:

• Statistics: general statistics about the sample. Include:

  • Total count of tasks.
  • Planned distance to cover.
  • Total detour time.

• Results: list of task names. When selecting a task from the list:

  • Information about the task is displayed in the card.
  • Route is displayed on the map (click Show on map to zoom in).

  You can manually change the list of filtering results to keep only selected tasks in the data sample. Click Edit list, select the required drivers, and click Apply.

To save this data sample and customize its visualization (e.g., as lines), click Create layer.

Filters

For the Tasks Planned Data category, the following filters are available:

• Task ID: task identifier from the Task Planner.
• Project name: project that the task belongs to.
• Email: driver email.
• Driver name: full name of the driver.
• App version: version of the mobile application on the driver device.
• Assigned: when a driver was assigned to the task. You can set a time frame to limit the data sample.
• Completed: when the task was completed. You can set a time frame to limit the data sample.
• Planned time: planned detour time, in hours.
• Planned distance: distance planned to cover, in kilometers.
• Completion: percentage of task completion.

To reset the parameter filter, click icon next to the filter name. To reset all parameter filters, click Reset filters at the bottom of the tab.

To hide the filter by territory, in the Geofilter settings dialog, click icon next to the geofilter name. To delete the geofilter, click icon next to its name. To delete all geofilters, click Clear filters.
