3D models

The map supports rendering of 3D models of the GLTF/GLB format. These models allow you to improve the esthetics of the map view, highlight certain objects, and increase the level of details.

To add models to the map, you need to configure a layer in the Style editor and prepare data. Examples below show styling of city sights, where each sight has a unique model.

Configuring a style layer

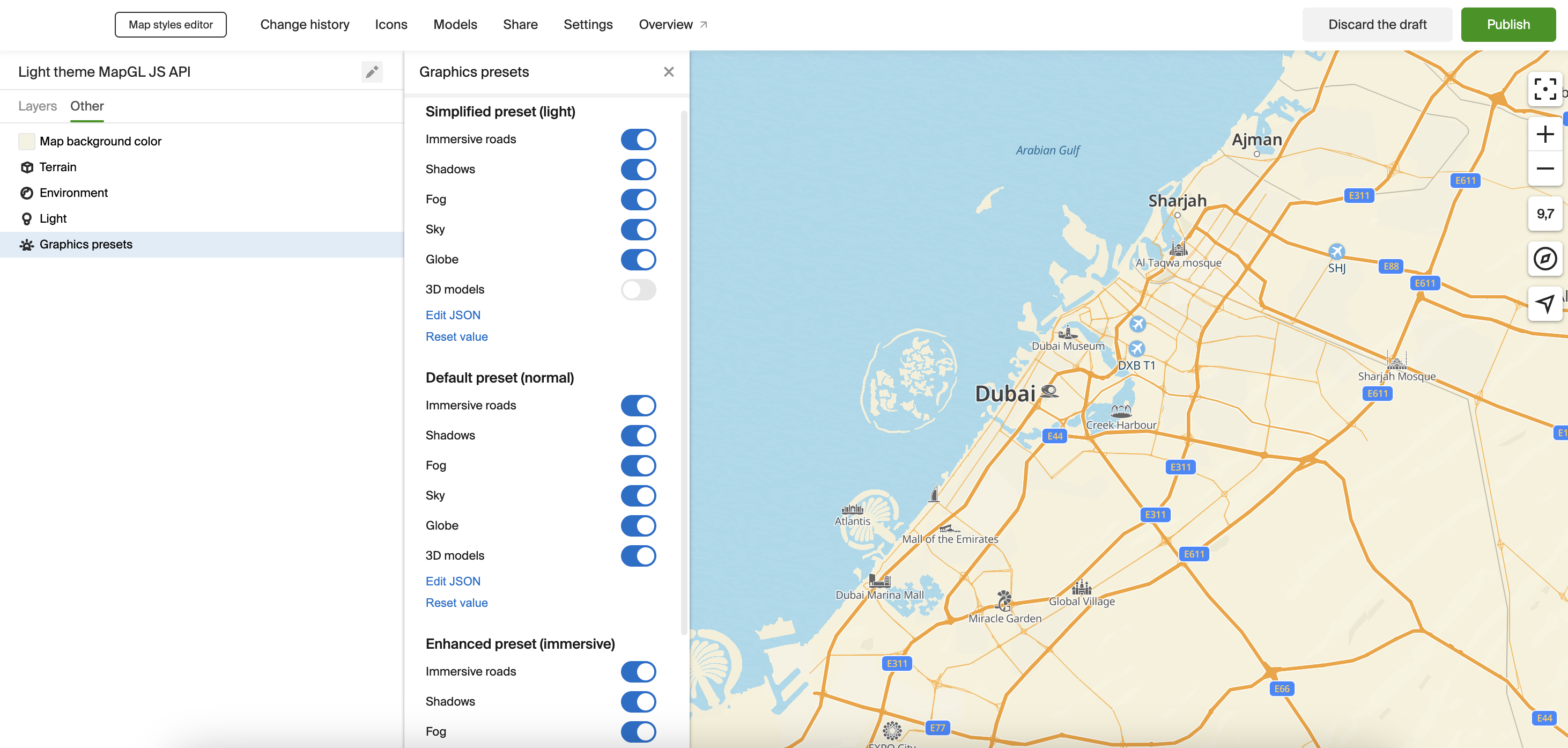

1. Open the Style editor.

2. Add a new layer and select the 3D model layer type.

3. On the Data tab, scroll down and select JSON - add manually.

4. Copy and paste the following code snippet:

   [
       "match",
       [
           "get",
           "layerType"
       ],
       [
           "SightModels"
       ],
       true,
       false
   ]

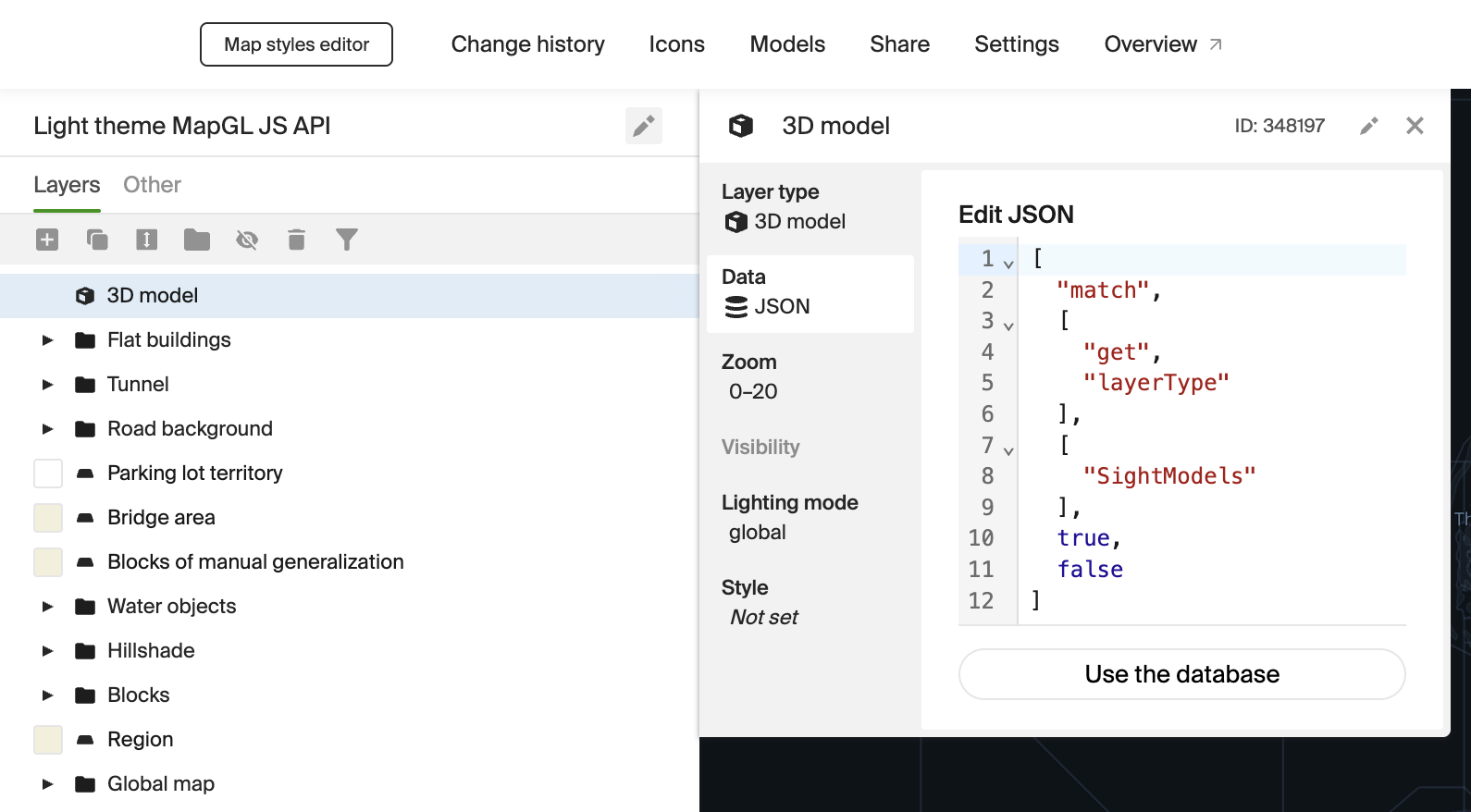

5. Switch to the Style tab and set the following parameters using JSON (click Edit JSON):

   Parameter	Value
   Model source	["get", "url"]
   Scale	["get", "scale"]
   Rotation	["get", "rotation"]
   Offset	["get", "translate"]

   Because the URL and exact location of models will be defined in the geodata, you need to link parameters of a model with its attributes using get expressions in the style layer.

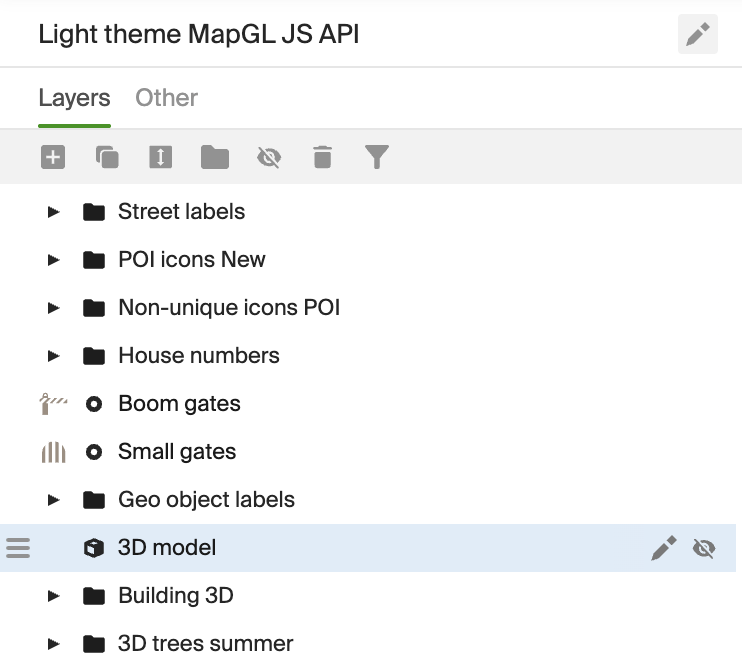

6. Place the resulting style layer after layers with POI and before layers with 3D buildings so that models do not overlay captures and icons:



7. In the editor toolbar, select Share and copy the style ID to be used later:



Preparing data

Set the location of each model and its positioning configuration in a GeoJSON file:

{
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "properties": {
                "url": 'https://disk.2gis.com/digital-twin/models_s3/docs/kingdomcentre.glb',
                "layerType": "SightModels",
                "scale": [1, 1, 1],
                "rotation": [0, 0, 0],
                "translate": [0, 0, 0],
            },
            "geometry": {
                "type": "Point",
                "coordinates": [61.284307, 55.177358]
            }
        }
    ]
}

Parameters:

• "type": "Feature" - common Feature object of GeoJSON.

• properties:

  • url - URL to load a model.
  • "layerType": "SightModels" - enables the map to match a data object to a created style layer.
  • scale - initial scale setting.
  • rotation - initial rotation setting.
  • translate - initial offset setting.

  You can edit transformation settings later, after checking the model position on the map.

• geometry:

  • "type": "Point" - point object.
  • coordinates - object center coordinates. In the given example, the object will be displayed in the 61.284307, 55.177358 point.

Note

Instead of manually selecting the model positioning settings (coordinates, rotation, and scale), use the tool for positioning models on the map. You can position the model and copy settings values: see the instruction on placing models on the map.

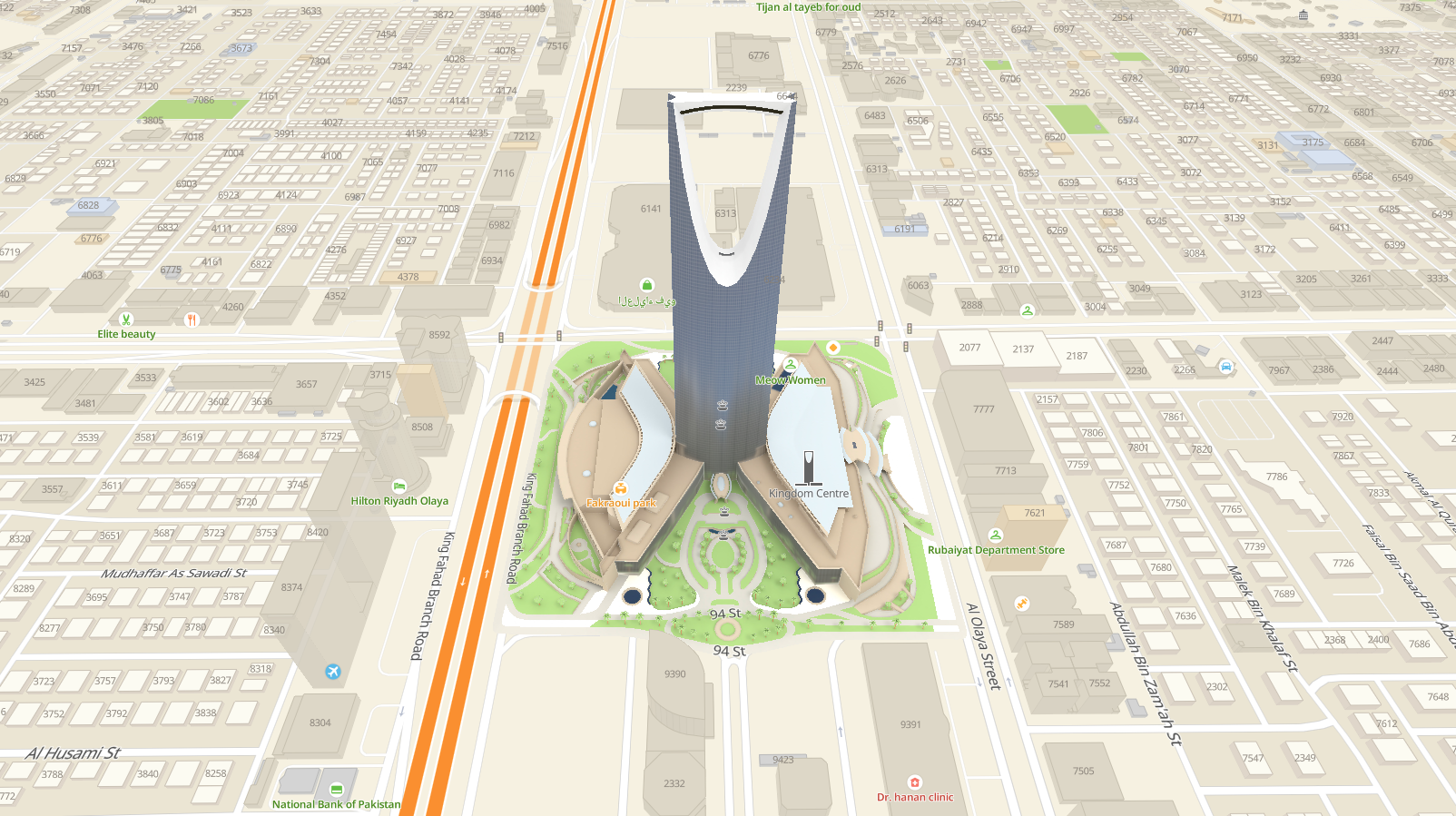

When the model data and the style layer are ready, you can evaluate an intermediate result:

You can see that the model is displayed on the map but is shown incorrectly. You need to configure its rotation and offset and hide a 3D building currently located in the model place.

Configuring model position

To correctly position the model, open the example with the intermediate result and edit values of the scale, rotation, and translate object parameters. To correctly display the model above, specify the following values:

"scale": [0.98, 0.98, 0.98],
"rotation": [0, 0, 23],
"translate": [22, -6, 0],

Details about 3D model positioning

3D models support transformations in three-dimensional space defined by x-, y-, and z-axes.

Scale transformation is done in the local coordinate system (Local in the picture above). Other transformations are performed in the World Coordinate System (World), where the x-axis faces east, the y-axis faces north, and the z-axis points upwards.

Scale

The scale is set in relative units based on the initial model size.

In most cases, you should change the model scale in all three axes at once. Otherwise, a model will look stretched and distorted.

Rotation

The rotation is set in degrees.

The most common case is rotating a model around the z-axis. Rotation around other axes may lead to model distortion.

Offset

The offset is set in meters relatively to the initial model location.

You should define the offset in x- and y-axes only to prevent a model from "hanging in the air".

Hiding overlaying objects

To hide an object on the map that overlays the model:

1. Get the object identifier:

   1. To subscribe to the click event on the map and make it return to the console, add the following snippet to your application source code:

      map.on('click', function (ev) {
          console.log(ev);
      });


   2. Open the browser Developer Tools (press F12) and click the object to be hidden. Copy the identifier from the target.id field of the event, for example:



2. Specify the received object identifier to the idsToHide field of the GeoJSON data:

{
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "properties": {
                "idsToHide": ["2111697998173735"],
                ...
            },
            ...
        }
    ]
}

1. Specify this filed in the Linked ids parameter of the style layer:

Parameter	Value
Linked ids	["get", "idsToHide"]

Final example

You can also check style layer settings in a prepared style. To access the settings, log into the Style editor and select Create a copy.
